Kev piav qhia
| Hom Fiber: | G.657A1 | Jacket Khoom siv: | LSZH |
|---|---|---|---|
| Fiber ntau: | 2 Fibers | Polishing: | PC |
| Jacket Xim: | Daj | Connector Style: | MTRJ-MTRJ |
| Warranty: | 1 Xyoo | Boot Xim: | Dub |
| Lub teeb siab: |
G.657A1 Fiber Optic Patch Cables, LSZH Fiber Optic thaj Cables, MTRJ rau MTRJ Fiber Patch Cord |
||

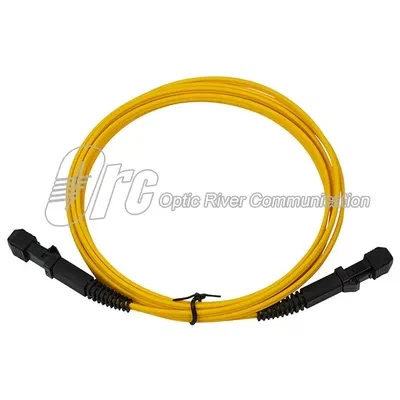

Fiber Optic Patch Cables Ib Hom Duplex MTRJ Rau MTRJ Poj Niam Txuas Hluav Taws Xob Zipcord Cable
MT-RJ connector yog dab tsi?
MT-RJ yog ib qho ntawm cov qauv me me uas tau tshwm sim tshiab Connectors uas tau dhau los ua ntau dua hauv kev lag luam sib txuas. MT-RJ siv ob lub fibers thiab sib xyaw ua ke rau hauv ib qho qauv tsim uas zoo ib yam li RJ45 connector. Alignment yog ua tiav los ntawm kev siv ob tus pins uas Mate nrog lub connector.
Cov ntaub ntawv khoom
| Hom Connector | MT-RJ to MT-RJ | Polish hom | PC |
| Fiber nab npawb | 2 | Fiber hom | G.657A1 |
| Lub wavelength | 1310nm / 1550nm | Cov khoom siv txuas | Plastic vaj tse, khau raj thiab ferrule |
| Insertion poob | Tsawg dua lossis sib npaug rau 0.3dB | Connector poj niam txiv neej | Poj niam-poj niam |
| Fiber qib | Khoov insensitive | Rov qab poob | Ntau dua lossis sib npaug li 55dB |
| Cable tsho | LSZH | Cable txoj kab uas hla | 2.0mm zipcord |
| Polarity | A(Tx)-B(Rx) | Ua haujlwm kub | -20-+60 degree |
Nta
◆ Txhua qhov txuas yog pom pom nrog lub 400x microscope rau txhua qhov chaw lossis sab hauv cov kab nrib pleb, khawb, kab mob lossis lwm yam tsis zoo.
◆ Lub cable yog duplex 2.0mm cable tsho uas yog nrov tshaj plaws
◆ MTRJ Connector Dimensions: 7.5mm Qhov siab x 9.5mm dav x 56mm Qhov tob
◆ LSZH Zipcord ntaub
◆ Ua kom ceev 50%
◆ 100% tshuaj xyuas rau cov yam ntxwv kho qhov muag ua ntej ua zaub mov xa tuaj
Daim ntawv thov
◆ Network cross-connect
◆ Telecommunication tes hauj lwm
◆ Data system networks
◆ Active ntaus ntawv networks
◆ Cov tshuaj zoo tshaj plaws rau kev xa cov ntaub ntawv ceev ceev
Teeb duab thiab cable ntev kam rau ua
| Ntev Ntev | |
| L<1M | ±0.08M |
| 1M Tsawg dua lossis sib npaug L<20M | ±0.10M |
| L Ntau dua lossis sib npaug li 20M | ±1%M |
