| Cassette Khoom siv: | Aluminium 6061 | Cable Khoom: | LSZH |
|---|---|---|---|
| MPO Fiber ntau: | 8F / 12F / 24 Fibers | Hom Polish: | UPC/APC |
| Hom Fiber: | SM/MM | MPO Adapter suav: | 6 Pcs |
| Lub teeb siab: |
fiber ntau optic enclosure, fiber optic cassette |
||
MPO adapter vaj huam sib luag rau cov ntaub ntawv chaw khib siv hauv kev sib txuas lus cable
MPO adapter pem hauv ntej vaj huam sib luag yog tsim los ua ib feem ntawm ORC 1U 19" tub rau khoom khib, uas tuaj yeem txhim kho daim ntawv thov ntawm cov ntaub ntawv chaw khib. .
Feature
◆ Poj niam thiab txiv neej MPO/MTP® xaiv ntawm Connectors
◆ Plug thiab Ua Si, Daim Ntawv Me Me
◆ Txhua lub cassette yog 100% Pre-Tested nyob rau hauv lub Hoobkas
◆ Txhawb OEM & ODM
Daim ntawv thov
◆ Data Center Infrastructure
◆ Fiber Optic Network Cable
◆ FTTx hauv passive optical network
◆ IDF / MDF nrog rau qhov chaw txwv
Specification
1. Kev khiav hauj lwm & Cia kub
| Tsis muaj | Min | Max | Chav tsev | |
| 1 | Ua haujlwm kub | -10 | 70 | degree |
| 2 | Cia Kub | -40 | 85 | degree |
2. Optical Performance
| Hom | Lub wavelength | IB Max | RL Min |
| Cov neeg tseem ceeb MTP-LC (MM) | 850nm / 1300nm | 0.35dB | 30dB ib |
| Cov neeg tseem ceeb MTP-LC(SM) | 1310nm / 1550nm | 0.35dB | 50dB ib |
| MPO-LC (MM) | 850nm / 1300nm | 0.6dB | 20dB ib |
| MPO-LC (SM) | 1310nm / 1550nm | 0.75dB | 50dB ib |
3. Geometry Parameters
| MT | ||||
| Kev ntsuas | Pass/Fail Limits | |||
| Tsis muaj | Min | Max | ||
| Radius ntawm Curvature | Ntev Axel | 2000 hli |
∞ |
|
| Luv Axel | 50 hli |
∞ |
||
| Lub kaum sab xis | Ntev Axel | -0.2 degree | 0.2 degree | |
| Luv Axel | APC | 7.8 degree | 8.2 degree | |
| PC | -0.2 degree | 0.2 degree | ||
| Fiber Qhov siab | 1000 nm | 3000 nm | ||
| Txawv Fiber Qhov siab | N/A | 500nm ua | ||
| Adjacent Fiber Qhov siab | N/A | 300 nm | ||
| Ferrule Length | 7.9mm ib | N/A | ||
4. Cov duab ntxaws
Khoom zoo
◆ Peb dhau ntau qhov kev pov thawj zoo, zoo li ISO, RoHS; thiab dhau qhov Supplier Audition ntawm tus account tseem ceeb.
◆ Peb muaj peev xwm ntau lawm. Standard thaj qaum muaj peev xwm yog 15, 000 connectors/hnub thiab MT khoom muaj peev xwm yog 3000 connectors/hnub.
◆ Peb cov qauv xeem yog nruj heev. Txhua lub cable raug kuaj ib tus zuj zus hauv peb cov kab ntau lawm nrog rau 100% kuaj los ntawm QC department.
◆ Peb qhov kev pabcuam tsim nyog. Peb hais kom teb thiab paub kev pabcuam rau txhua tus neeg siv khoom.
ORC QC Process Flow Chat

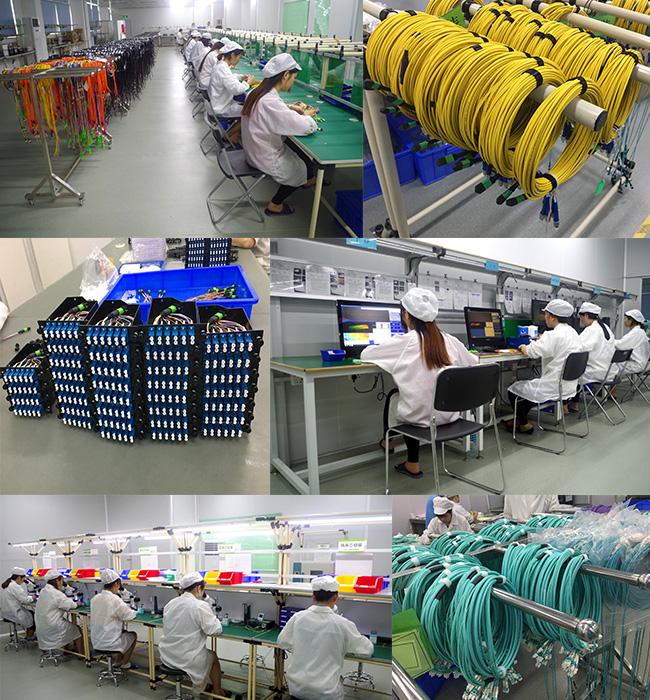

ORC Production Show
FAQ
1. Q: Koj tuaj yeem sim ib hom jumper li cas?
A: Peb cov kab hluav taws xob ib leeg tau raug sim rau qhov kawg ntawm lub ntsej muag tshuaj xyuas, singlemode IL thiab RL kuaj.
2. Q: Cov cables no puas siv tau nrog ntau lub modules?
A: Yog lawm, LC cables tuaj yeem sib xws nrog SFP, SFP + (BIDI SFP +), XFP, SC cables tuaj yeem sib xws nrog BIDI SFP, GBIC, X2 thiab XENPAK.
3. Q: Koj lub sijhawm ua haujlwm nruab nrab yog dab tsi?
A: Peb lub sijhawm ua haujlwm yog tswj hwm hauv 5 hnub ua haujlwm rau cov khoom tsis tu ncua. Rau cov khoom MT, peb lub peev xwm yog 3000 connectors ib hnub twg.
4. Q: Koj puas tuaj yeem tsim raws li cov qauv peb xa tuaj rau koj?
A: Tau kawg, peb tuaj yeem tsim raws li koj cov qauv lossis cov duab kos duab.
